IM-240ANE

IM-240ANE

Category:

Description

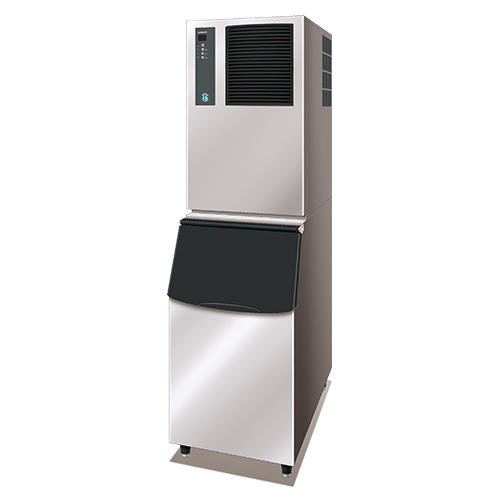

Hoshizaki Icemaker (Cube) Up to 240kg

IM-240ANE-product-detail

Model No. IM-240ANE
DIMENSIONS (WxDxH) 560 x 700 x 880 mm
PACKED DIMENSIONS (WxDxH) 680 x 820 x 1065 mm
WEIGHT (NETT/GROSS) 80 KG / 91 KG
AMPERAGE / STARTING AMPERAGE 6.6A / 35A
ELECTRICAL CONSUMPTION 1320 W
REFRIGERANT CHARGE R404a
HEAT REJECTION (AT32°C/WT21°C) 2870 W (2470 kcal/h)
OPERATING CONDITIONS: • Voltage Range: 198V-254V • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50 Hz
*60Hz units are available upon request

Brand

HOSHIZAKI
